Thread: Refinishing your drumset! (getting an awesome natural finish DIY)

  1. #1

    User Info Menu

    Refinishing your drumset! (getting an awesome natural finish DIY)

    Okay I figure that some people might be interested to see how I did this... so I'm posting this into a thread here. Posting into a few posts because of number of image restrictions.

    I got inspiration to do this from pearldrummersforum.com; I saw a lot of people there (mostly westerners I think) doing a lot of DIY with their own drums. So some time back, because my school became less busy for a while, I set aside some time to refinish my Pearl Target drumset. It looks a lot better after I replaced the "piano black" wrap with lacquered red wood.

    Throughout, BE VERY CAREFUL not to damage your drums. The wood is strong but it only takes a little bit of chipping to damage it. Most especially, the "bearing edges". This is the part of the shell that actually touches the drumskin (the top and bottom rims of the shell) so it's very important. Always be careful with them. You might want to put the drums on a soft surface; I did everything on thick layers of old newspaper so it protected both the floor and the drum.

    You'll need to prepare:

    1) Sandpaper, in various grades of roughness
    2) Thinner or something else to remove glue
    3) Rust remover, metal polish (if required)
    4) Wood dye (or wood stain or paint, but I think dye is better)
    5) Lacquer/clearcoat/polishing oil
    6) Cloth (rags) and paintbrush (preferably very large, makes your job easier)
    7) Hair dryer or something else that can shoot hit air
    8) Something sharp and thin, e.g. ruler or something
    9) Screwdrivers, drum keys, etc. to take apart the drums
    10) Something to cover the floor (it will be messy)
    11) Something to cover yourself (especially your hands, trust me on this)

    Dismantling drumset

    First thing to do, of course, is take apart your drumset.



    Remove all the hardware. It's surprising that the hardware is possibly HEAVIER than the drums. Picking up the drumshell is surprisingly light.



    You may have to polish off any rust or stains that the hardware has. Trust me, don't ever let your drumset get horribly dirty, it's a pain in the ass to clean up.
    Last edited by RudimentalDrummer; 30-09-08 at 05:32 PM.

  2. #2

    User Info Menu

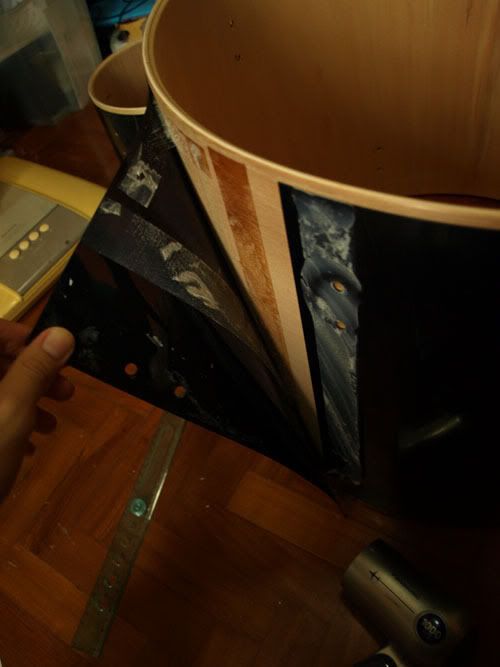

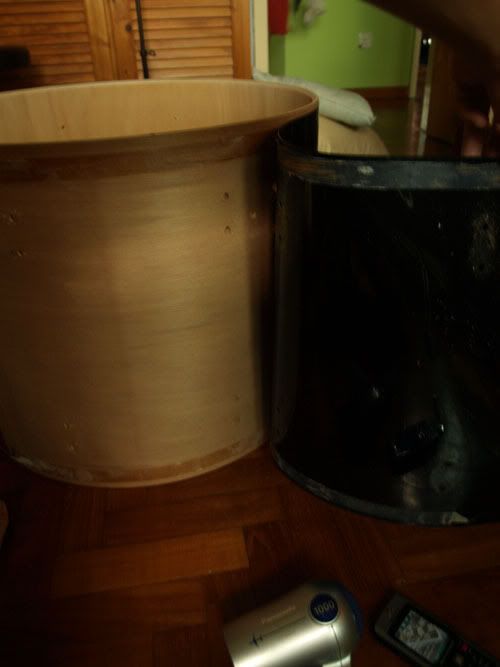

    After that, you can start peeling off the wrap. It's glued on. The glue can be loosened with heat, e.g. hair dryer. Don't set it to too hot, go up and down the edge and pick at it with your fingers or some thin thing like a ruler or penknife, just be very careful not to scratch the wood. You can see that when they wrap around, it overlaps on the little bit that they glue there, so for this you can use something sharp.



    Now just work with your fingers and hairdryer. You'll probably find it easier to wedge the drum between your legs and hold it tightly with your tighs while your hands work at it. Go slowly, let it heat up and pull it off gently. You don't want to accidentally rip off part of the wood while peeling the wrap.

    Different drumsets will probably be glued differently. My Pearl Target had seals at the edges and down the length of the shell, while the Pearl Forum that I worked with was glued only at the overlapping area. I've also heard of drums that are glued throughout, those must be horrible to work with.



    I couldn't figure any way to remove the vent and put it back nicely, so I left it in. Consequently, I had to cut away the wrap around the vent.

    After a while, though, I found a better technique. I made a cut in the wrap in the direction of the vent, then pulled. I don't know how to describe this. But if you pull it correctly, you'll be able to pull all of it out from under the vent without leaving any traces.



    The glue will leave stains on the drum, you'll have to remove it.

  3. #3

    User Info Menu

    Since the glue leaves stains, prepare thinner and sandpaper.

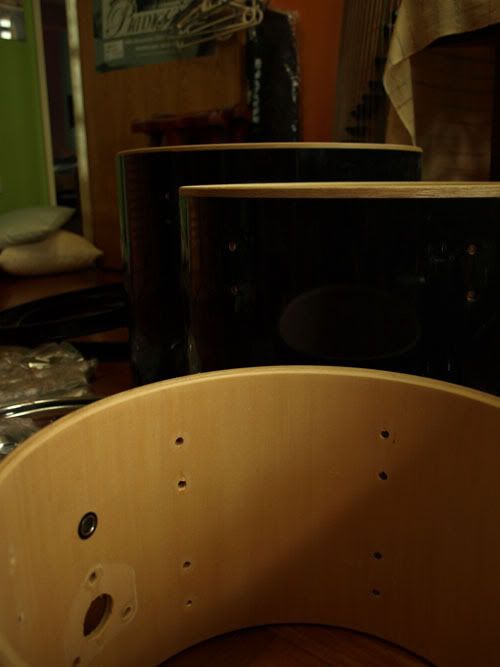

    Focus on the wood grain as it is now- this is what it looks like under the wrap. It isn't as nice as those pretty veneers that come on high-end drums, but it sure beats plain black. Taken with flash for greater clarity in the absence of steady hands or a tripod.

    You can attack the glue traces with various things. I've seen "glue removers" at hardware shops, but what I used was thinner.

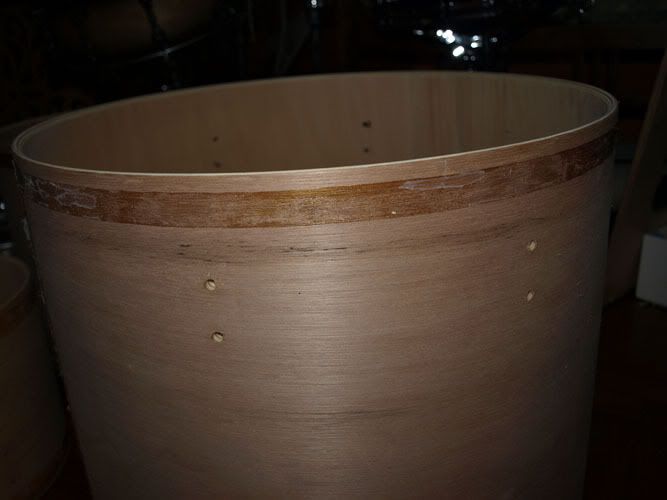

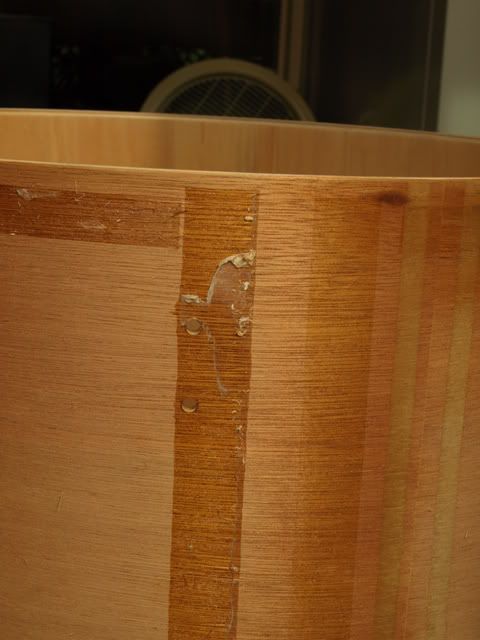

    In this photo, on the left is the untouched part, while on the right is after thinner. There'll still be some traces, I think it's because the glue gets a little absorbed into the wood or something. You'll have to sandpaper it off.

    Go to a hardware shop and ask for wood sandpaper. You can get it in various grades, I can't remember exactly what I used, but it was fairly coarse. If you feel worried about it, use fine sandpaper first. If you can't get it off with fine sandpaper, then use coarse sandpaper. After that, you might want to use the fine sandpaper again to smoothen out the surface.

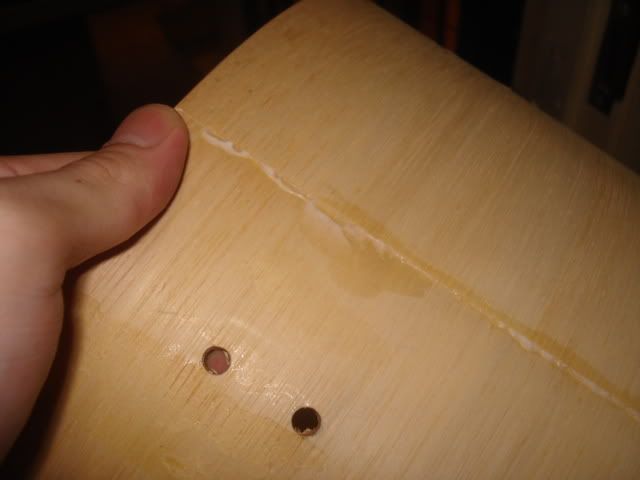

    This was for my Target drumset. The shell glueing is slightly different from the Forum drumset; this one the plies fit in "circles" while for the Forum the plies spiral outwards. So on that one, you'll have a very problematic seam at the outside:



    I had to very carefully sand off that one. It's a serious pain in the ass. Because it's a spiral, so there'll be a matching seam on the inside of the shell. So if you peer inside your shell and see a seam like this too, you might want to think twice and decide if you REALLY want to go through the trouble.

  4. #4

    User Info Menu

    Dyeing drumset

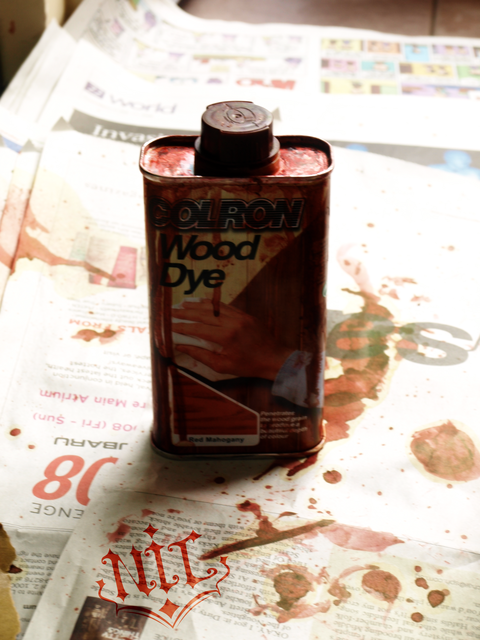

    For this I used "COLRON Wood Dye" that I bought from Homefix DIY. Very easy to find. If you can't find, ask them for "Wood Dye". Pick the colour yourself.



    and a cloth.



    Wood dye penetrates into the wood. That means if you cut or dent the wood, it'll be the same colour inside. Stain only hits the top surface. Also, if you think the wood might be stubborn and refuse to accept the colour, then dye can penetrate it more strongly than stain can.

    Paint will cover over the top surface. This will give you a nice solid colour. But with dye, you can get to see the wood grain.

    Also, it'll only stain or dye the parts that you apply it onto. I'll go more into that later.

    For every process so far, I started work on the bass drum first, simple because it was the biggest by far, and after finishing the bass drum, all the other drums would seem so simple in comparison. Also, I started work on the bottom of the bass drum, so that if I screwed it up, it'll be resting against the floor anyway, so it wouldn't be seen.

    Anyway, the process was rather quick. I used rubber gloves, and kept my right hand free to manipulate the shell around. I handled the dye and cloth with my left hand. It's quite simple, slopping dye onto the cloth and wiping it evenly across the shell.

    Here's the result.




  5. #5

    User Info Menu

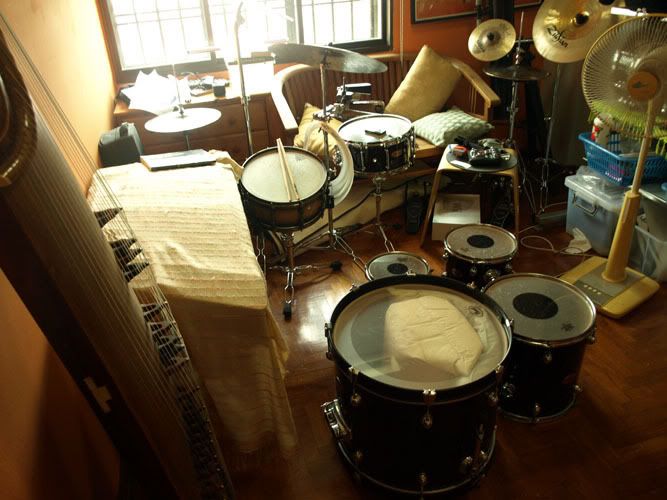

    As a comparison, I took this photo halfway through.



    There's the dyed bass drum, undyed floor tom, and the matching snare for the drumset, just that it no longer matches the toms and bass. I think, this deep red natural finish is much nicer than the original black wrap.

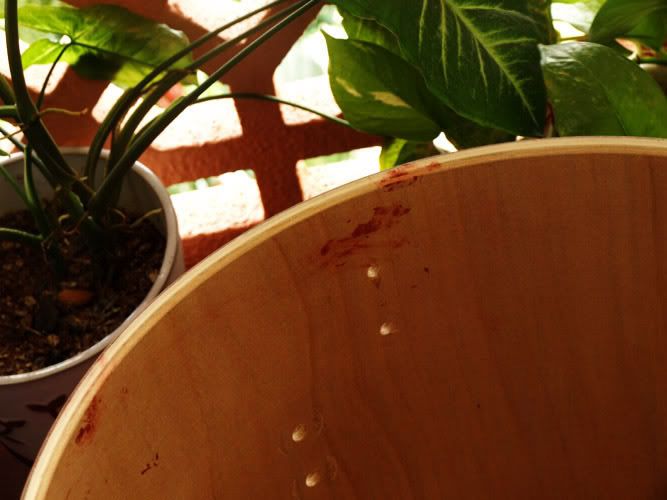

    I had a bit of problem, though. Without realizing, I accidentally got some dye onto my right hand, and ended up leaving some stains on the inside of the shell.



    No one will see, though, so don't worry about that =P if you're really worried, wrap newspaper on the inside first just in case or something. Or you can lacquer the inside. This apparently changes the sound a little (some people do that on purpose, never tried it before) but also, it makes the inside immune to stains.

  6. #6

    User Info Menu

    Lacquer

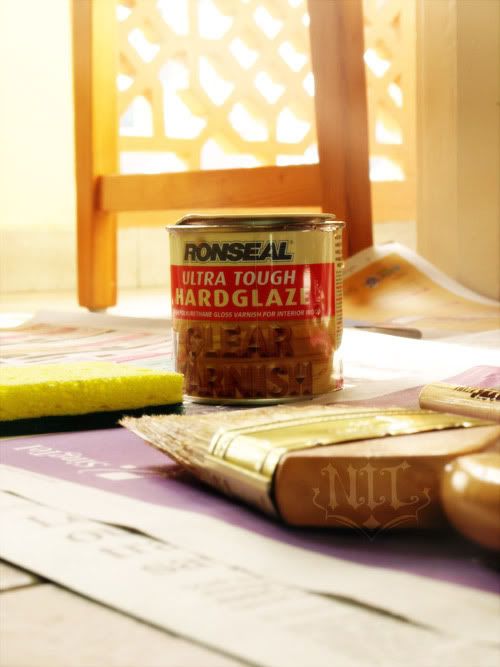

    I used Ronseal Ultratough Hardglaze (Clear Varnish), also from Homefix DIY.



    On the bottle of Colron Wood Dye they recommended using Clear varnish. I like the result.

    I used a wide brush from Nippon Paint, and the butt end of a broken drumstick to stir the varnish. Since drumshells are not very intricate (they're just cylinders) you don't need a fine brush, in fact, you'll very much prefer the big brush since it can brush a lot of area at once.

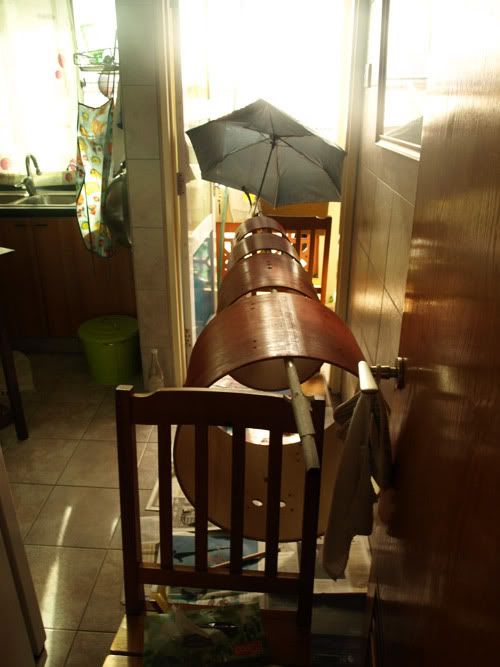

    Set up my drum shells on a bamboo pole between two chairs.





    The umbrella at the end is to protect from direct sunlight and just in case it suddenly starts raining.

    Before working on it, I lightly "sanded" it with a rough cleaning sponge (I couldn't find extremely fine grit sandpaper around, I think it has to be specially ordered, so I made do with this). I didn't rub too hard in case it took off anything important, so I just went over until it looked and felt smooth and I couldn't see any specs on it.

    I started from below and brushed upwards to prevent drip, slowly turning the shell until I covered the entire area. I could cover maybe, one quarter to one third of the drum with each dip of the brush, then smoothened it out. After going one complete round, I continued "brushing", but without dipping for more varnish, to smoothen out the existing varnish on the shell.

    Started with the bass drum, again. Initially, I had too much lacquer on my brush, so it was dripping a little. I smoothened it out, and managed to get the right amount on subsequent brushing.

    You can do multiple coats, but do thin coats each time. In fact, you SHOULD do multiple coats.

  7. #7

    User Info Menu

    Finishing up

    When it dries, you might want to polish it a little. Make sure you leave it overnight, or if you can wait a few days, even better. You can also get lacquer polish from wherever you got your lacquer, this makes the outside even more shiny.

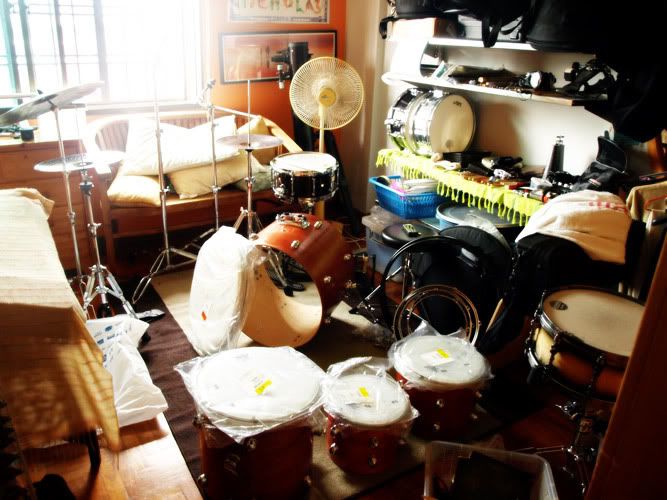

    Then, put the hardware back on.






    It works on drumsticks too, just make sure you get the unlacquered kind.


  8. #8

    User Info Menu

    Kick ass!

    The bass drum hoops are ... Heh..

    Me likey your snare collection.

  9. #9

    User Info Menu

    This looks DAMN nice! That red looks so bloody and raw. Great job, I shall buy unlacqeured sticks and try this
    Make music.

  10. #10

    User Info Menu

    Great work! The drums look great!

    I like your guzheng in the corner
